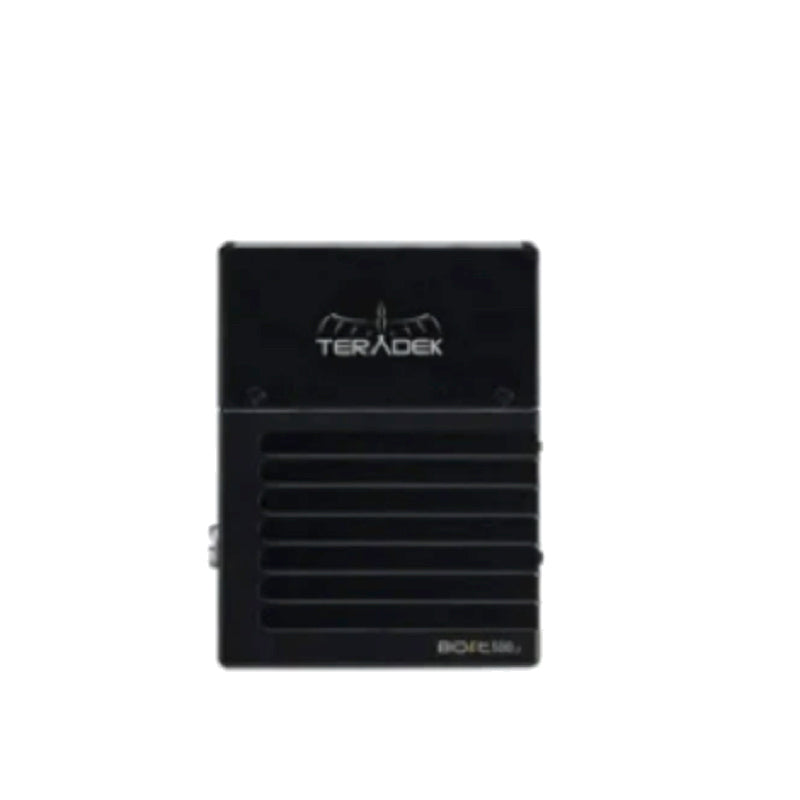

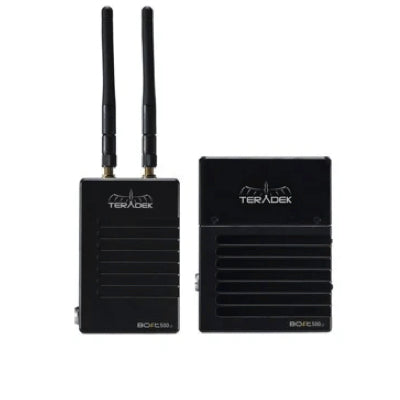

Teradek Bolt 500 Wireless Monitor 1:1 Kit

Daily:  $200.00
Weekly:  $600.00

  • (1) Teradek Bolt 500 Transmitter
  • (1) Teradek Bolt 500 Receiver
  • (2) Large Antenna
  • (2) SmallRig Universal Magic Arm
  • (3) 2' - SDI Cable
  • (3) 1.5' - D-Tap To 2-Pin Lemo Cable
  • (1) Teradek AC Power Adapter
  • (1) Hard Case

$200.00 Day/Weekend Rate
$600.00 Week Rate
$1,800.00 Month Rate

  • Construction:

Milled aluminum (chassis) and regulation-compliant PCB

  • Video Inputs:

3G/HD/SD-SDI: 1 x BNC (75 Ohm)

  • Video Outputs:

3G/HD/SD-SDI: 1 x BNC (75 Ohm)

  • Color Sampling:

YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)

  • Latency:

<0.001 seconds (TX to RX without format conversion)

  • Supported Resolutions:

1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94

  • Video Processing:

Compression:
Visually lossless
Color Correction:
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color)

  • Audio Compression:

48 kHz, 24-bit PCM

  • Audio Input:

Embedded

  • Interfaces:

Switches: On/Off and Reset
Desktop App: Feature-rich Bolt Manager application for OS X and Windows
USB Interface Functionality: Upgrade via mini-USB

  • Wireless:

Non-DFS Frequencies:
UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz
EU & JP: 5.19 to 5.23 GHz
DFS Frequencies:
US: 5.27 to 5.55 GHz and 5.67 GHz
EU & JP: 5.27 to 5.67 GHz

  • RF Power:

17 dBm EIRP

  • Encryption:

AES-128

  • Range:

Up to 500' / 152.4 m line of sight

  • Unicast Multicast:

Unicast / multicast

  • Noise Rejection:

Can coexist with Wi-Fi and 5 GHz cordless phones

  • Power Input:

2-pin connector
7 to 17 VDC

  • Power Consumption:

Nominal 7.3 W (measured at 1080p60)

  • Operating Temperature:

32 to 104°F

  • Mountable:

Multiple mounting options with M3 and 1/4"-20 holes
3/8" ARRI-style accessory mount

  • Dimensions:

0.95”x2.6”x4.47"

  • Weight:

8oz
